forge steel globe valve150LB~600LB
Edit Date: 2016/1/7 View:
- Brand: feiqiu
- Standards: API 602、ASME B16.34、BS 5352
- Class: 150LB~600LB
- Size: 1/2"-2"
- Material: A105, F11,F304(L), F316(L) etc.
- Medium: water, oil, steam etc.
Introduction
forge steel globe valves 150LB~600LB are used to cut or connect the pipe medium under nominal pressure between Class150~600, working temperature≤600℃ in oil industry,chemical industry, pharmaceuticals, fertilizer and power industry.
Application Standard:
API 602、ASME B16.34、BS 5352
Testing according to API 598
Marking to MSS SP25
Socket Welded Ends to ASME B16.11
Screwed Ends to ASME B16.11
Butt Welded Ends to ASME B16.25
Flanged Ends to ASME B16.5
Standard Material Specification
| NO. | Part Name | CS to ASTM |
AS to ASTM |
SS to ASTM
|
|
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Gasket | Corrugated SS+graphite | SS+PTFE | ||
| 3 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 4 | Pin | A276 420 | A276 304 | ||
| 5 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |
| 6 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 8 | Yoke Nut | A276 410 | |||
| 9 | H.W.Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 10 | Nameplate | SS | |||
| 11 | Handwheel | A197 | |||
| 12 | Gland Flange | A216 WCB | A351 CF8 | ||
| 13 | Stem Packing | Flexible Graphite | PTFE | ||
| 14 | Bonnet | A105 | A276 304 | A182 F304(L) | A182 F316(L) |
| 15 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 16 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29℃～425℃ | -29℃～550℃ | -29℃～180℃ | ||

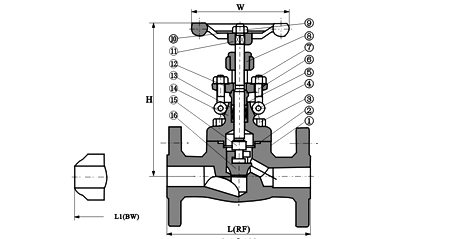

Dimension (mm) and Weight (Kg)
| NPS | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | ||
|
L(RF) L1(BW) |
150Lb | 108 | 117 | 127 | 140 | 165 | 203 | |
| 300Lb | 152 | 178 | 203 | 216 | 229 | 267 | ||
| 600Lb | 165 | 190 | 216 | 229 | 241 | 292 | ||
| H(開) | 150Lb～300Lb | 166 | 171 | 207 | 240 | 258 | 330 | |
| 600Lb | 171 | 207 | 240 | 258 | 330 | 380 | ||
| W | 100 | 100 | 125 | 160 | 160 | 180 | ||
| Weight | 150Lb | RF | 4.5 | 6.9 | 9.8 | 13.5 | 19.5 | 28.0 |
| BW | 2.3 | 3.6 | 7.8 | 8.2 | 12.0 | 15.0 | ||
| 300Lb | RF | 4.8 | 7.7 | 11.0 | 16.8 | 21.2 | 32.6 | |
| BW | 2.8 | 4.0 | 8.5 | 9.2 | 12.6 | 16.8 | ||
| 600Lb | RF | 5.6 | 7.8 | 12.5 | 17.0 | 23.5 | 38.8 | |
| BW | 3.4 | 4.7 | 9.2 | 10.5 | 13.3 | 18.9 | ||
